Cairn

    Audio

    Sound is miniaudio. Sound files are .wav, .mp3 or .flac.

    Playing a sound

    An AudioSource plays a clip from where its entity is.

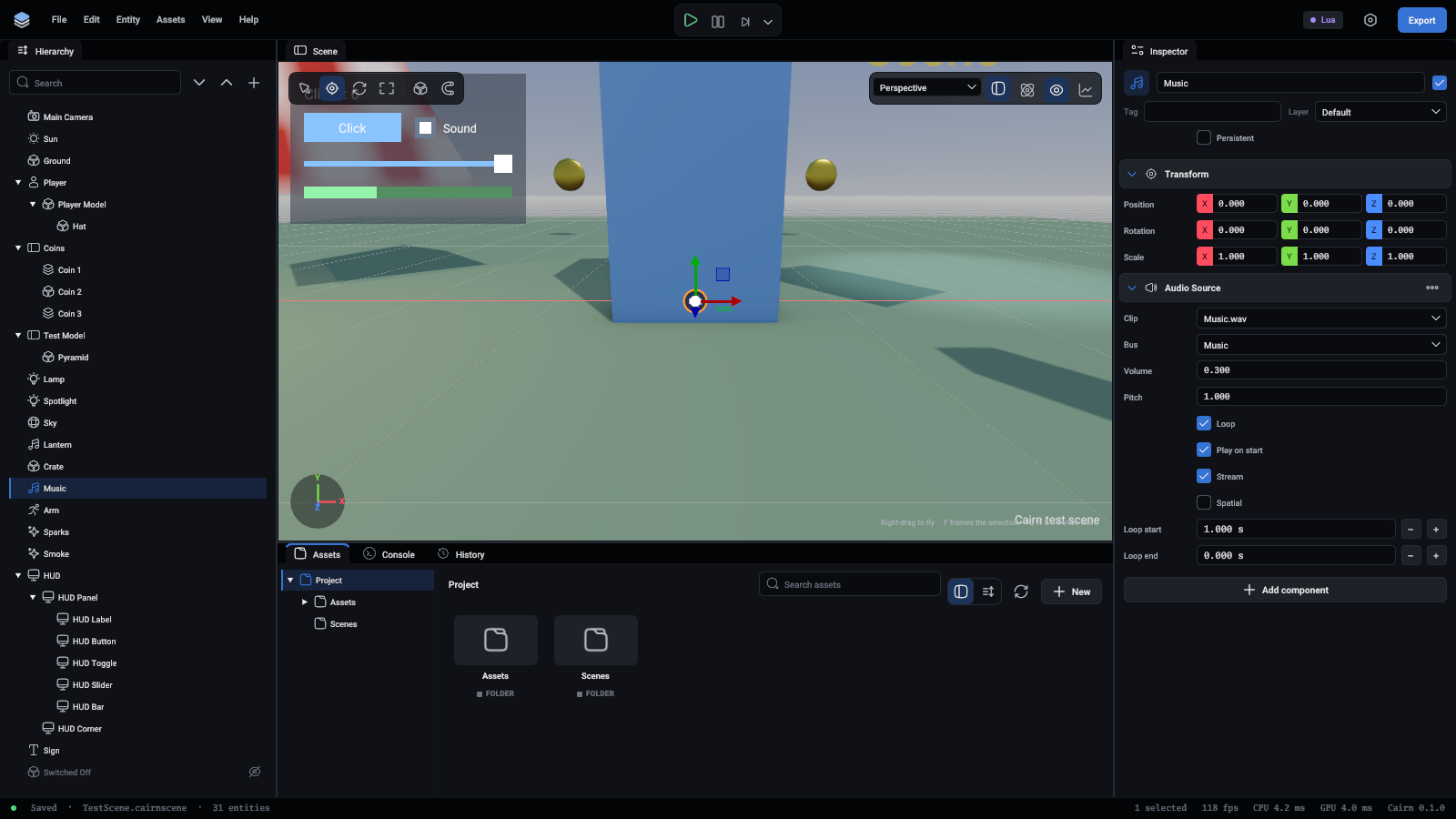

    An audio source on the Music bus

    FieldMeaning
    ClipThe sound file
    BusSfx or Music
    Volume, Pitch1 is as recorded
    LoopStart again at the end
    PlayOnStartStart when the scene does
    SpatialHeard from the entity's position. Off, it sounds the same everywhere
    MinDistance, MaxDistanceFull volume within the first, silent beyond the second
    StreamRead from the file as it plays. For music
    LoopStart, LoopEndIn seconds, so music can play its opening once and loop the rest
    Lua
    TypeScript
    local source = self.Entity.AudioSource
source:Play()

    For a sound that needs no entity:

    Lua
    TypeScript
    local beep = Assets.Find("Assets/Audio/Beep.wav")
Audio.PlayOneShot(beep, 0.6)                      -- everywhere
Audio.PlayOneShot(beep, 1, self.Entity.Position)  -- from a place

    The listener

    Spatial sounds are heard from the first active AudioListener. With none in the scene, that is the primary camera.

    Buses

    Every sound plays on Music or Sfx, and both go through Master. Each bus has a volume, a low-pass filter and a reverb, and can be muted.

    Lua
    TypeScript
    Audio.SetVolume("Music", 0.5)
Audio.SetLowPass("Master", 500)   -- muffled, as under water. 0 turns it off
Audio.SetReverb("Sfx", 0.4)       -- the echo of a room
Audio.SetMuted("Music", true)     -- silent, keeping its volume for later

    The project sets how each bus starts, on the Audio page of Project settings or with a command:

    {"command": "project.set_audio", "master": 1, "music": 0.6, "sfx": 0.9, "music_low_pass": 800, "sfx_reverb": 0.2, "music_muted": false}

    Settings.Save() keeps the volumes the player chose. The project's effects and mutes stay as the project sets them.
